1.4 Final section

I’m sure that you thought about the solution and for sure is your best solution. I’ll share my personal way to resolve.

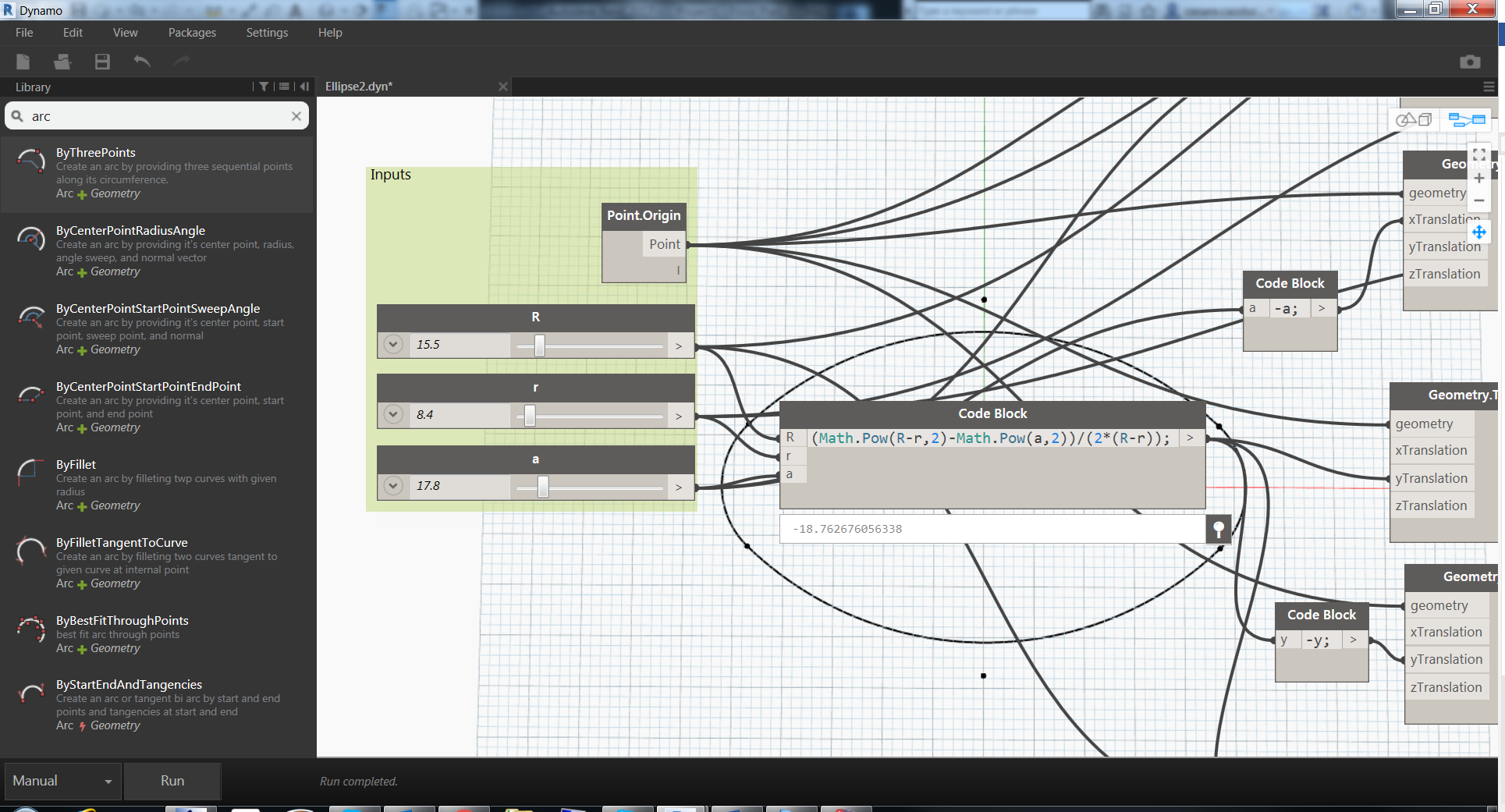

We have 4 different circles and for all of them we have: center point and two points on the circle. In Dynamo we have exactly a node that is suitable for these input and is called Arc.ByCenterPointStartPointEndPoint. Actually we have also the radius but in this case is not necessary.

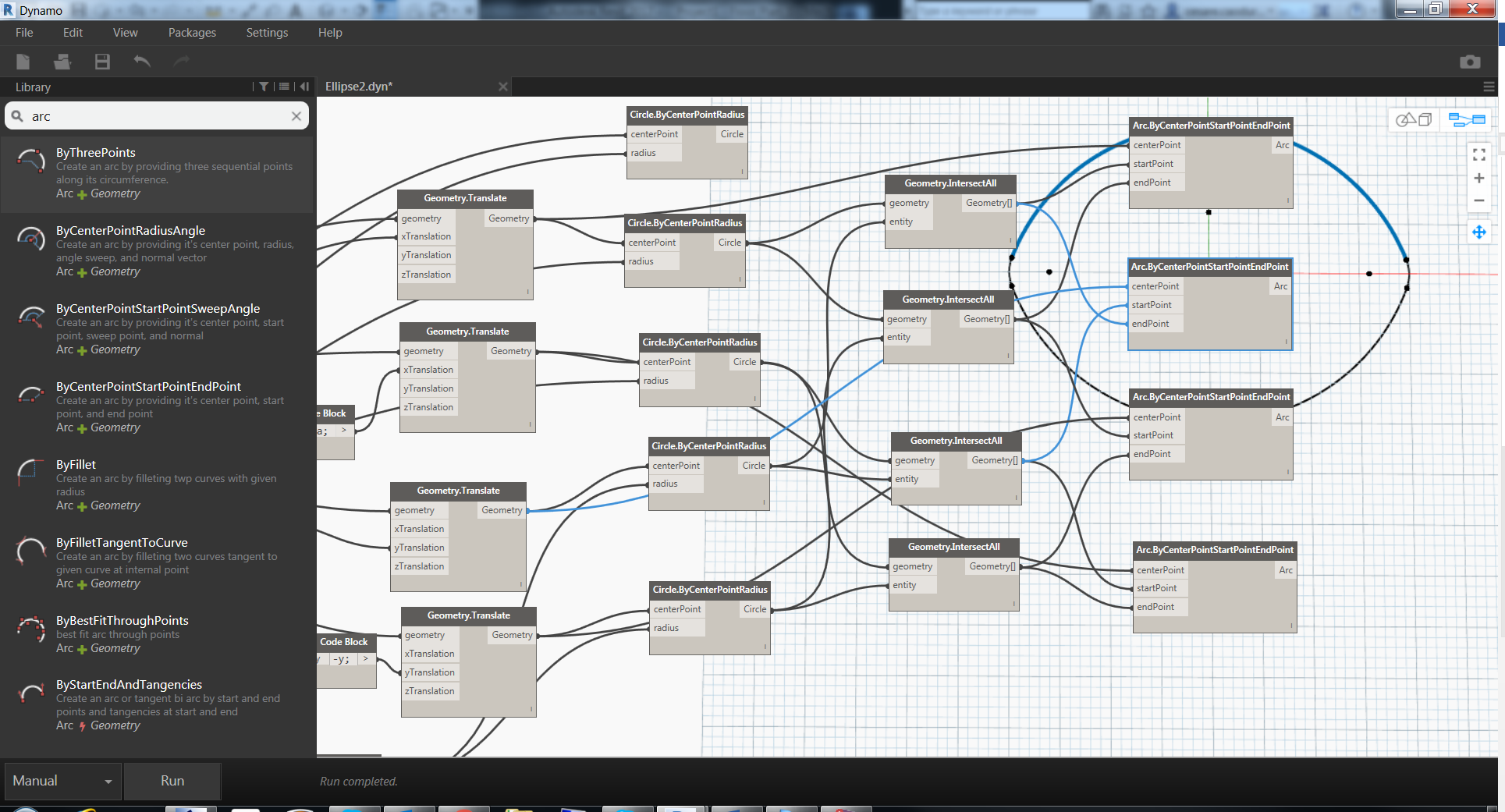

To be more visible the result of the arc node, I’ll hide all the construction circles. Simply click on the node that is producing the geometry and remove the mark on Preview (do it on all the circle nodes). Same operation for all the others intersections. Is a combinations of all the center points and the correct start and end point. I’m sure that if you’re at this point of the tutorial you’re also able to connect in the correct way all the points. Perfect! The section is also finished and now you can try to play with the input values to see the final result. Happy? I know! In the following chapter we’ll finalize the tower creating floors, external surface and some mathematical twisting.
