2.3 Main model

What we need now is a federated model with all the disciplines linked. In this particular example I just prepared a simple model with walls on two different levels to be able to test if the workflow is working when a system is going from one level to another, intersecting two or more different walls.

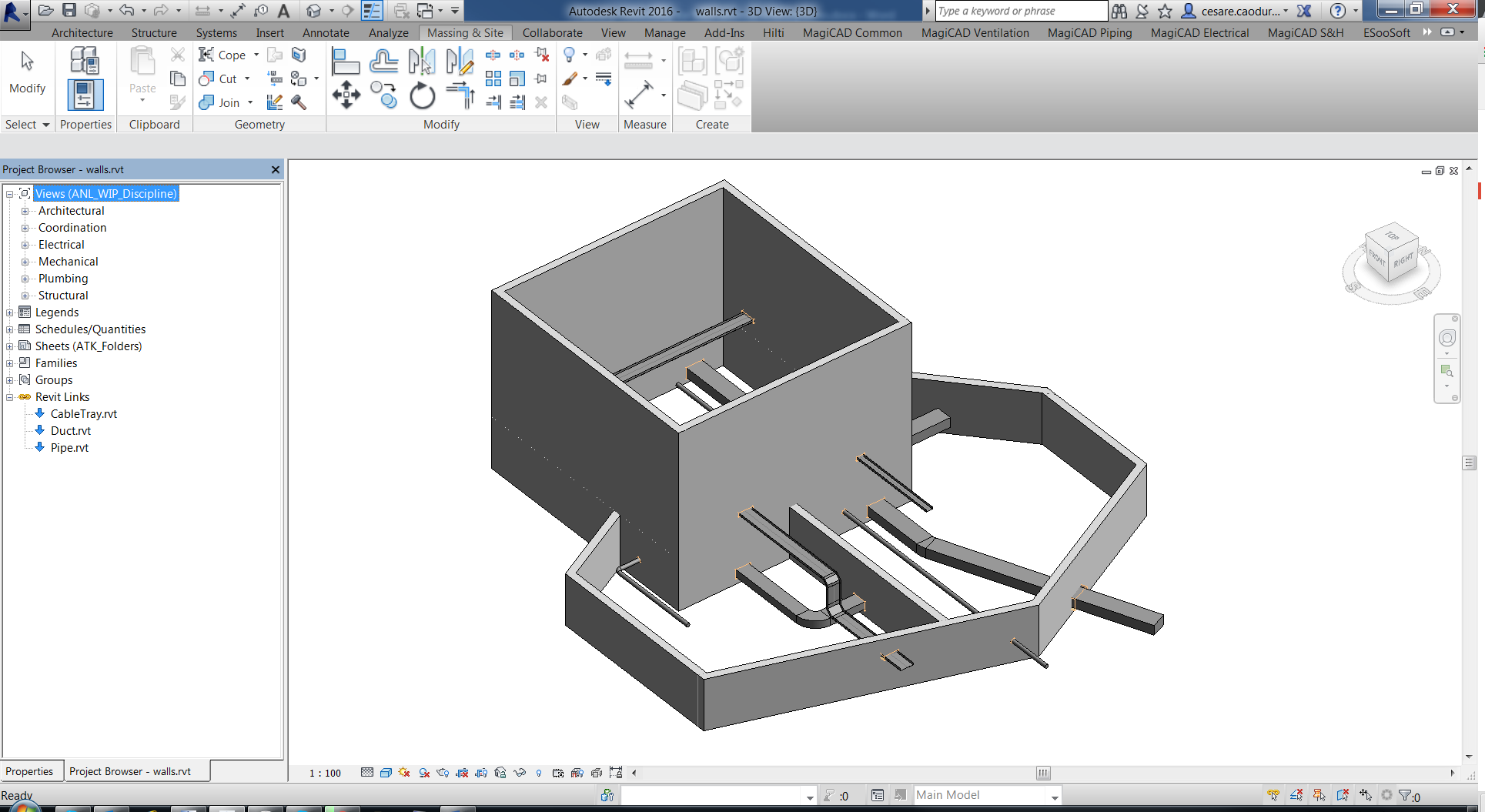

All the systems are in different linked models and, as you can see from the picture, this system will never work!
